Modern technology to extend the life of air centrifugal compressor rotors - ROTORS

Funding agency: RELANSIN, Project 1666/2003

Coordinator - I.N.C.D.T COMOTI  - Bucuresti , Project leader: Eng. Puscasu

Partner - INOE 2000 –Magurele, Partner project manager: Dr. Viorel Braic

Partner “Politehnica” University – CEMS, Partner project manager: Prof. Dr. Eng. Simona Zamfir

Partner and beneficiary - S.C. PETROM SERVICE S.A. – Bucuresti, Partner project manager: Eng.  Adam Liviu



                Objective

Novel design of the air centrifugal compressor rotors

Novel coating applied to air centrifugal compressor rotors  aiming to extending their useful life



Specific objectives for INOE 2000:

v  Novel coating applied to air centrifugal compressor rotors  (5 typo-dimensions) aiming to extend their time-life

Results:

  1. 3 types of multilayers:

-          M3: TiC /  TiC0.5N0.5 / TiN;

-          M5: TiC / TiC0.7N0.3 / TiC0.5N0.5 / TiC0.3N0.7 / TiN;

-          M9: TiC / TiC0.7N0.3 / TiC0.5N0.5 / TiC0.3N0.7 / TiC0.5N0.5 / TiC0.7N0.3 / TiC0.5N0.5 / TiC0.3N0.7 / TiN













SEM image of M3                                                            SEM image of M9





Uncoated rotor size S1

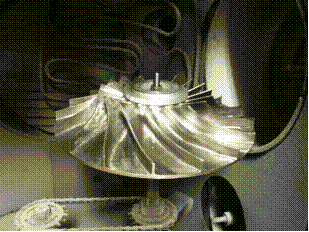

Uncoated rotor size S5                        M9 coated rotor size 4 inside the deposition chamber















Coating thickness (µm)

Microhardness (HV0,03)

Adhesion (N)

Rotor S1

4.5

2770

39

Rotor  S2

4.6

2750

38

Rotor  S3

4.6

2750

39

Rotor  S4

4.6

2760

37

Rotor  S5

4.5

2770

38





  1. Deposition processes: cathodic arc























          Different rotors inside the deposition chamber of the cathodic arc deposition equipment



  1. Published papers

-          “Microchemical and microstructural properties of metallic nitride and carbide hard coatings deposited by arc-evaporation, M. Braic, V. Braic, M. Balaceanu, G. Pavelescu, A. Vladescu, Rom.Rep.Phys, vol.55.no.3, pag. 451-461, 2004

-          “Mechanical and wear resistance characterisation of titanium based hard coatings deposited by the arc method, A.A.Popescu, I Tudor, V. Braic, M.Braic, M.Balaceanu, A. Tudose, BPU-5, Applied Physics, pag. 1677-1681, 2003



  1. Presentation at national and international conferences

- “Superhard Ti(C,N) coatings obtained by plasma processes, V. Braic, M.Braic, M.Balaceanu, G.Pavelescu, A.Kiss, Proc. XVII-th Int. ESCAMPIG Conf., pag. 189-190, Constanta, Sept. 2004

-  „Nitride and carbide multilayer coatings” prezentata la Workshop on Surface engineering, 18 October 2003, Magurele, Bucharest.



  1. Patent

RO122134 (B1)/2009

Multilayer covering material, M. Balaceanu, V. Braic, M. Braic, A. Vladescu
